trailers with surge brakes or hydraulic brakes. The additional wire is tapped into the backup lights to disengage the hydraulic trailer coupler (actuator) when the vehicle is reversing, thus turning off the trailer's brakes. 6-Way Connectors 6-Way connectors are available allowing the basic hookup of the three lighting functions (running, turn, and brake) the ground and two extra pins are ... Typically the ground wires attache to the trailer frame near the brakes, while all 12-volt wires are tied together and run to the 12-volt connection on the trailer. Finally, your 7-pin connectors have a blue wire for the trailer brakes. The also have a pin for 12-volt accessories. Make sure these have not inadvertently been swapped. If they were, the brakes would be on all the time.

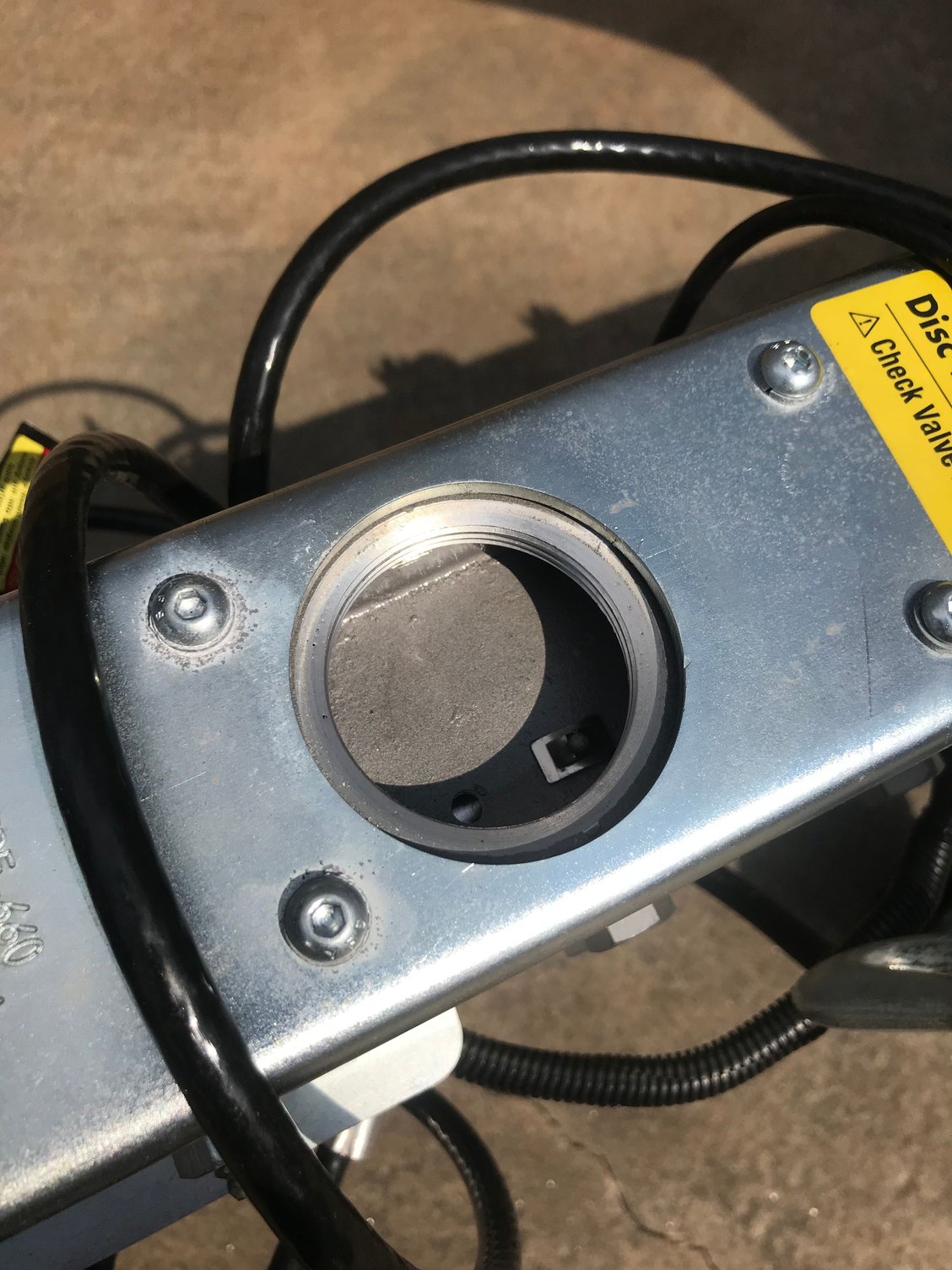

Update: The trailer surge brake was not working at all. The plunger had a major leak and it required replacing the surge brake assembly.Please comment belo...

Boat trailer surge brakes diagram

Traditional Trailer + with Brakes = Use a 5-Pin Connector. Wire the first 4 pins (White, Brown, Yellow, Green) just like the 4-pin connector above. 5. Blue = Electric Brakes or Hydraulic Reverse Disable (See Blue Wire Notes below.) In the Trailer Wiring Diagram and Connector Application Chart below, use the first 5 pins, and ignore the rest. Can you bleed your trailer brakes by yourself? ... In real life, the chains should be tighter than in diagram to provide leverage for ... Boat and Trailer. HYDRAULIC SURGE DRUM BRAKE KIT INSTALLATION . A: INTRODUCTION The hydraulic surge brake system is a totally trailer self contained braking system. It requires no interconnection of any mechanical or electrical components to the tow vehicle (other than the brake coupler itself) to provide totally automatic and proportional operation of the trailer brakes.

Boat trailer surge brakes diagram. Surge brakes are actuated by an actuating coupler on the trailer, so all you will need is a trailer wiring harness for the lights and an electric lockout, if your actuating coupler has an electric lockout. You can tell if your actuating coupler has an electric lockout by looking at the trailer connector. If you have a 5-pin trailer connector ... Atv with remote kill switch Trailer surge brake manufacturers deal with this in different ways: Use “Free Backing” brake assemblies on the axle that allow the brakes to disengage only in reverse. This is the most common method. Use an electric solenoid valve that allows the brake fluid to bypass back to the reservoir while in reverse. Ontario trailer parts manufacturer and distributor in business for over 45 years. We sell wholesale to OEMs and, dealers across Canada. Retail customers welcome. Buy from our Online store.

ATW-85841. Atwood - Master Cylinder for Atwood Drum Brake Actuator (Obsolete/Discontinued) Brake master cylinder for Atwood Model 60 surge acuator. Includes internal piston, seals and spring. Product Details. Quick view. Quick view. Price. $14.95. Also, some trailers with surge hydraulic brakes use this 5th pin to disable the brakes when the vehicle is reversing. This is not in the trailer wiring diagram above. (If you do this, connect the blue wire to the reverse lights on the vehicle side, then be sure to note what you’ve done.) Better yet, use a … 05.07.2018 · Conventional hydraulic brakes rely on a surge actuator that is built into the trailer coupler and that compresses when the tow vehicle slows and the trailer pushes against it. A delay occurs between the time the tow vehicle brakes are applied and the time the actuator applies the trailer's brakes. This delay is longer than that of electric brakes. Also, you have to lock out a typical surge ... 1 Mar 2014 — Trucks & Trailers - Understanding surge brakes. - I have had more than 10 boats w/ trailers, some trailers had no brakes, some had electric ...

21.11.2018 · As a rule, 5-Way flat connectors are used for trailers that feature surge brakes or hydraulic brakes. The extra wire, as a rule, is used to power backup lights. When it is plugged, it disengages hydraulic trailer actuator when you reverse, so the trailer brakes are off at that moment. Trailer wiring diagram 6 pin (round) 9 Oct 2019 — Boat trailers with surge brakes can often be submerged in water when boats are being retrieved and launched, causing premature corrosion on the ... Torsion Axle Towing Diagram; Hydraulic Surge Drum Brake Kit Installation; Shipping & Returns ; Aluminum Boat Trailers; Compare ; Sign in Register; Search. Order delays may occur due to nationwide part shortages and extended shipping times from FedEx and USPS. We are working as quickly as possible to ship orders out in a timely fashion, but cannot guarantee delivery dates. See below for … Price:$546.48. In Stock. Surge Brake Actuators are Brand and Model Specific. However, you can replace one Brand with another, as long as you are replacing the entire assembly. As we are a Titan dealer, we carry all Titan Surge Brake Actuators and replacement parts for them. Titan Brand products are top of the line and are built with a Tough ...
