42 the three major parts of an erd diagram are:

The highest level of abstraction for the data model is called the Entity Relationship Diagram (ERD). It is a graphical representation of data requirements for a database. Entity Relationship Diagram. The main value of carefully constructing an ERD is that it can readily be converted into a database structure. There are three components in ERD.

An ER Diagram consists of the following components: 1. Entity. An entity may be an object, place, person, or an event which stores data in the database. In an entity-relationship diagram, an entity is represented by a rectangle. Student, course, manager, employee, patient, etc. are examples of an entity.

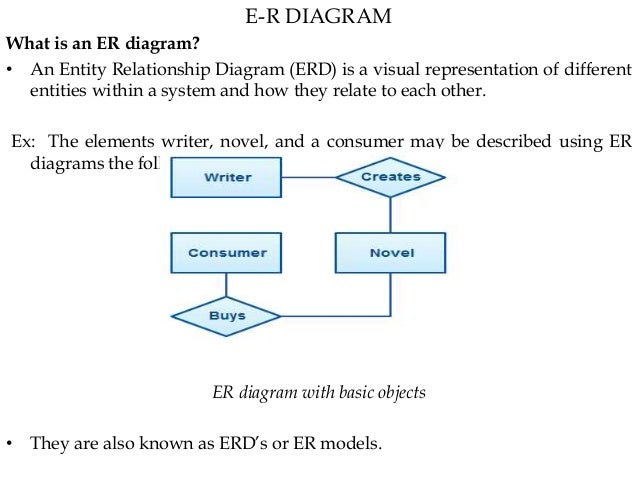

An Entity Relationship (ER) Diagram is a type of flowchart that illustrates how "entities" such as people, objects or concepts relate to each other within a system. ER Diagrams are most often used to design or debug relational databases in the fields of software engineering, business information systems, education and research.

The three major parts of an erd diagram are:

The cerebrum is the largest part of the brain. Located in the front and middle part of the brain, it accounts for 85% of the brain's weight. Of the three main parts of the brain, the cerebrum is considered the most recent to develop in human evolution.

An Entity Relationship Diagram (ERD) is a type of diagram that lets you see how different entities (e.g. people, customers, or other objects) relate to each other in an application or a database. They are created when a new system is being designed so that the development team can understand how to structure the database.

Entity-Relationship (ER) Diagrams 29 STUDENT DEPT MINOR_D FACULTY TUTORS CHAIR_F MAJOR_D Tutor Tutee 1 1 N M N M All departments have a faculty member who serves as the chair. A faculty member can only chair one department. N 1

The three major parts of an erd diagram are:.

An entity-relationship (ER) diagram is created based on these three types, which are listed below: one-to-one relationship : In relational database design, a one-to-one (1:1) relationship exists when zero or one instance of entity A can be associated with zero or one instance of entity B, and zero or one instance of entity B can be associated ...

An entity relationship diagram (ERD) illustrates how different entities (such as customers and products) relate to each other in a database. Here are the the three primary parts of an ERD: Entities: The tables in your database. Entities are nouns. Common classifications are concepts, locations, roles, events, and things.

An ER diagram is a means of visualizing how the information a system produces is related. There are five main components of an ERD: Entities, which are represented by rectangles. An entity is an object or concept about which you want to store information. A weak entity is an entity that must defined by a foreign key relationship with another ...

Parts of a Seed Diagram A typical seed consists of three main parts: 1) seed coat, 2) endosperm, and 3) embryo. 1) Seed Coat. They are the protective outer covering of a seed that is usually hard, thick, and brownish in color. The seed coat is formed from the outer covering of the ovule called the integument.

The three major parts of an ERD diagram are: a) Process, data flow, data store b) Attribute, modularity, cardinality c) Relationship, data flow, entity d) Relationship, attribute, entity e) Process, entity and relationship. D. The basic building block of a data model is the: a) Entity b) Relationship

An entity relationship diagram (ERD) is a popular type of database diagram that clearly displays the system entities and their internal relationships. See this article right now to explore more about the ER Diagram field including advantages, usages, and how-to tips.

Just so, what are the three key parts of an entity relationship diagram ERD )? There are three basic elements in ER-Diagrams: Entities are the "things" for which we want to store information. An entity is a person, place, thing or event. Attributes are the data we want to collect for an entitiy.

ER Diagram stands for Entity Relationship Diagram, also known as ERD is a diagram that displays the relationship of entity sets stored in a database. In other words, ER diagrams help to explain the logical structure of databases. ER diagrams are created based on three basic concepts: entities, attributes and relationships.

Components of ER Diagram. Entity-Relationship model making possibility to describe a database using components of ER Diagram in which in the tables data can be the point to data in other tables - for instance, your entry in the database could point to several entries.. ConceptDraw DIAGRAM is a powerful professional software extended with Entity-Relationship Diagram (ERD) solution from the ...

An entity relationship diagram showes a simple database for the business order process. The entity relationship diagram shown in the above image contains six entities - supplier, customer, order, item, product and shipment. There are five kinds of relationship such as supplied by, requested on, used in, included on and sent by.

Creating an Entity Relationship Diagram (ERD) and associated data dictionary to represent the reality and capture business data requirements Transforming ERD to relational model: tables, keys (constraints), etc. Creating the database and other supporting structures based on a specific DBMS Conceptual Design Logical Design Physical Design 2

What Are the Main Parts of a Plant Root System. A typical plant root system shows four distinct regions or zones: 1) region of root cap, 2) region of cell division or meristematic region 3) region of elongation, and 4) region of maturation or differentiation. Each region of the root performs specific functions.

Erd templates | er diagram examples | moqups

The three major parts of an ERD diagram are: a) Process, data flow, data store b) Attribute, modularity, cardinality c) Relationship, data flow, entity d) Relationship, attribute, entity e) Process, entity and relationship. d) Relationship, attribute, entity. 20. What is true about creating an entity relationship diagram?

Entity relationship diagram (erd) tutorial - part 1

Entity Relationship Diagram, also known as ERD, ER Diagram or ER model, is a type of structural diagram for use in database design. An ERD contains different symbols and connectors that visualize two important information: The major entities within the system scope , and the inter-relationships among these entities .

What is entity relationship diagram (erd)?

The Entity Relationship Diagram ( ERD) is a graphical representation of an ERM and is currently one of the most popular and widely used database design tools. Components of the ER Model The three main components of the ER Model are entities , attributes and relationships.

Solved 3. an entity relationship diagram (erd) is a | chegg.com

Entity-Relationship model making possibility to describe a database using the components of ER Diagram in which in the tables data can be the point to data in other tables - for instance, your entry in the database could point to several entries. The Three Major Parts Of An Erd Diagram Are

Entity-relationship diagram symbols and notation | lucidchart

Learn how to create an Entity Relationship Diagram in this tutorial. We provide a basic overview of ERDs and then gives step-by-step training on how to make ...

What is entity relationship diagram (erd)?

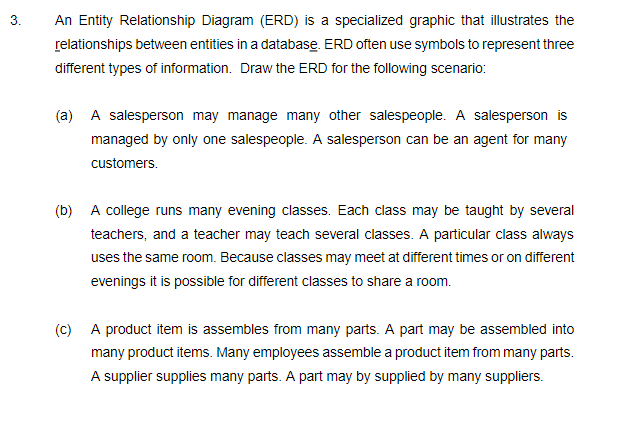

Transcribed image text: DAD 220 Quantigration RMA Diagram The database you are building is based on this diagram. Each of these tables represents an entity. Each entity contains attributes (fields). Attributes have data types, and some are identified as primary or foreign keys. The ERD is the blueprint for building your relational database.

Entity relationship diagram (erd) - what is an er diagram?

The entity relationship (ER) data model has existed for over 35 years. It is well suited to data modelling for use with databases because it is fairly abstract and is easy to discuss and explain. ER models are readily translated to relations. ER models, also called an ER schema, are represented by ER diagrams. ER modelling is based on two concepts:

Entity relationship diagram ( erd ) | explained er model in dbms

There are three basic elements in an ER Diagram: entity, attribute, relationship. There are more elements which are based on the main elements. They are weak entity, multi valued attribute, derived attribute, weak relationship, and recursive relationship.

Er diagrams vs. eer diagrams: what's the difference? | cacoo

required from the domain you are studying - that your diagram is complete. 4 Entity Relationship Diagrams 4.1 Elements of Entity Relationship Diagrams: 4.1.1 Entity A data entity is anything about which we want to store data . 4.1.2 Relationship A relationship is a semantic association between one or more entities. 4.1.3 Attribute Entity 1

Database — modeling : entity relationship diagram (erd) (part 5 ...

An Entity-relationship model (ER model) describes the structure of a database with the help of a diagram, which is known as Entity Relationship Diagram (ER Diagram).An ER model is a design or blueprint of a database that can later be implemented as a database. The main components of E-R model are: entity set and relationship set.
