A 4 wire transmitter has 2 wires connected to a power supply and 2 signal wires connected to the plc. For complete instructions on wiring a basic 4 way switch see our wiring a 4 way switch article. To view it at full size click on the diagram. In this circuit there are three leads coming from the rtd instead of two. 4 After pulling all four wires through the conduit and into the equipment control box connect them to the proper terminals as indicated by the wiring diagram on the lid of the equipment control box. The next method is parallel wiring.

PSD25 Wiring Diagrams Cable Assembly Wiring Colors: Pin 1 - Brown Pin 2 - White Pin 3 - Blue Pin 4 - Black Note: wiring colors are based on AutomationDirect CD12L and CD12M 4-pole PNP cable assemblies. PSD25 Series Pressure Switches See our website www.AutomationDirect.com for complete Engineering drawings. tPRS-2 Pressure Sensors and Gauges 1 ...

4 wire pressure transducer wiring diagram

4 Wire Pressure Transducer Wiring Diagram – wiring diagram is a simplified adequate pictorial representation of an electrical circuit. It shows the components of the circuit as simplified shapes, and the skill and signal connections along with the devices. A. Sensor wire B. Transmitter C. Shield ground point. Ground the transmitter: option 3. Procedure 1. Ground sensor wiring shield at the sensor, if possible. 2. Ensure the sensor wiring and signal wiring shields are electrically isolated from the transmitter housing and other grounded fixtures. 3. Ground signal wiring shield at the power supply end. • Pressure transducer output remains constant re-gardless of pressure • In severe cases, there will be no output. ... Refer to the wiring diagrams on the reverse for the IP rating of the unit which is being installed. Mounting The G2, G3, GV and T2 transducers require no special ... 4-20mA Output 3-Wire Voltage Output.

4 wire pressure transducer wiring diagram. Submersible Cable Wire 4 Connector Wiring DIN (Form A, Form C) 5 Bendix™ (6 Pin, 4 Pin) 6 Packard™ Metri-Pack 150 7 Minifast™ and M12x1 8 DT04 DEUTSCH (6 Pin, 4 Pin) 9 Molex™ 10 Pressure + Temperature Transmitter Wiring Cable or Wire (Pressure & Temp.) 11 DIN Connector (Pressure & Temperature) 12 A 4-wire transmitter has 2 wires connected to a power supply, and 2 signal wires connected to the PLC. The power supply can be AC or DC depending upon the vendor and model. 2-wire transmitters As its name states, a 2-wire transmitter has only 2 wires. In a 2-wire current loop, the transmitter, DC power supply, and PLC are connected in series. Pressure sensors with a 0.5…4.5V output for industrial 3-wires current loop (4…20mA) applications Nov. 2004 4/9 Analog-Digital Micromechanical Sensor Systems Description of the application Pressure transmitter SM5812's output signal of 0.5V…4.5V is to be converted into an output current signal of 4…20mA as a 3-wire version. Pressure Sensor & Wiring DiagramAmazon Printed Bookshttps://www.createspace.com/3623928Amazon Kindle Editionhttp://www.amazon.com/Automotive-Electronic-Diagn...

Wiring color code diagram for Transducer Techniques Load Cells available online for download or viewing, come checkout other online services. Smart Load Cell Systems Buy Online or Call 800-344-3965 vent path is 360° around the transmitter between the housing and sensor. (See Figure 2-4.) Keep the vent path free of any obstruction including but not limited to paint, dust, and lubrication by mounting the transmitter so that fluids can drain away. Figure 2-4: In-line Gage Low Side Pressure Port. A. A. Pressure port location. March 2021 ... Wiring-Diagram-For-Pressure-Transducer. 10 v, 0 5 v and other.Pressure transducers installation and wiring diagrams 4 20ma transmitter 3 wire difference of 20 ma in 2 technology wika blog electrical connections guide dylix corporation types china fst800 1100 refrigeration air compressor mems gauge 0 40 mpa sensor 5 volt 3wire ss30214n400b4 5v sendo transducer or the design engineer s avnet ... "AN6(7)" and "AP6" 3-Wire DC Outputs Figure 12 Electronic Output Circuit Figure 13 Wiring Diagram Figure 10 Electronic Output Circuit Figure 11 Wiring Diagram "AN4" and "AP4" 3-Wire DC Outputs NPNtransistor (i.e.currentsinking negativeswitching) N.O.output PNPtransistor (i.e.currentsourcing positiveswitching) N.O.output NPNtransistor (i ...

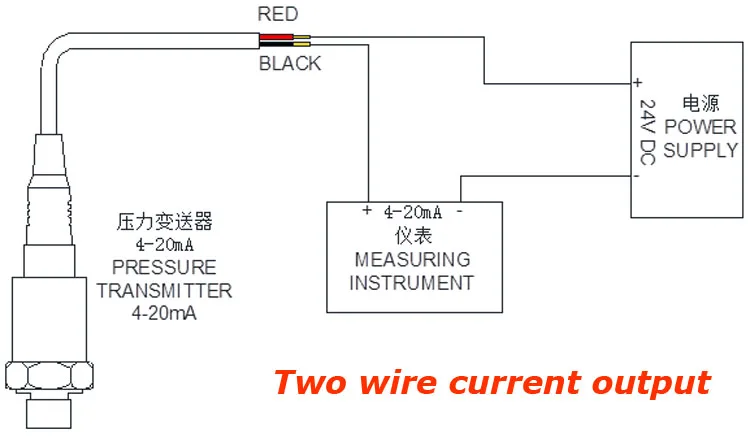

What exactly is the difference between the 4-20 mA output signal in 2- and 3-wire technology? This question is answered best from the viewpoint of the user: An output signal in 2-wire technology means: less wiring required. better EMC protection, since interferences can be filtered more easily. better protection against wiring errors. Figure 1. It is a typical usage of two-wire 4-20mA pressure transmitters for most customers showed in figure 1. After the pressure transmitter is powered on, the loop current is proportional to the pressure to generate a 4-20 mA signal by collecting the pressure. The current flow through the sampling resistor (typical 100 Ω, 250 Ω) which ... Omega Pressure Transducer Wiring. Output: 4 to 20 mA (2-wire) ±1% FSO. Zero Balance: 4 mA technology developed by OMEGA to meet the pressure transducer offers superior performance in. Page 1. Page 2. at Newark element Buy your PXGI from an authorized OMEGA distributor. Cable, Wire & Cable Assemblies · Cable Assemblies Sensors & Transducers . Source: omega.co.uk. Size: 12.43 KB. Dimension: 220 x 147. DOWNLOAD. Wiring Diagram Pics Detail: Name: 2 wire pressure transducer wiring diagram - 4 20ma Transmitter Circuit Diagram Awesome 3 Wire Pressure Transducer Wiring Diagram. File Type: JPG.

USE OF SUBMERSIBLE PRESSURE TRANSDUCERS IN WATER-RESOURCES ...

Apr 17, 2019 · Pressure transducers that output milliamp signals can connect to multiple devices in series. The fact that they can transmit signals over long distances without interference makes it easier to connect a milliamp-signal device to multiple instrumentation units. This diagram illustrates the correct wiring.

Integration of pressure sensors into the PLC - WIKA blog

A wiring diagram is a streamlined standard pictorial depiction of an electric circuit. 2 wire pressure transducer wiring diagram 4 20ma transmitter circuit diagram awesome 3 wire pressure transducer wiring diagram. All devices in a 4 20 ma current loop need to be supplied power from somewhere in order to function.

An Introduction to DP Transmitters ~ Learning Instrumentation ...

Pressure sensor link, https://www.ato.com/pressure-sensorThe video shows the connection of the 2-wire ATO pressure sensor/transducer. The ATO pressure sensor...

Introduction to the Two-Wire Transmitter and the 4-20mA ...

The 4 mA zero-end current is sufficient to drive the internal circuitry of the transmitter and the current from 4 to 20 mA represents the range of the measured process variable. The power supply and the instruments are usually mounted in the control room. The schematic diagram below shows the wire transmitter configuration:

Pressure Sensor vs Transducer vs Transmitter | TE Connectivity

RTD wiring configurations There are three types of wire configurations, 2 wire, 3 wire, and 4 wire, that are commonly used in RTD sensing circuits. A 2-wire configuration with a compensating loop is also an option. 2 wire RTD connections The 2 wire RTD configuration is the simplest among RTD circuit designs.

NI9219, NI9221 with 0-5Vdc pressure transducer connection ...

Jul 07, 2018 · Name: 4 20ma pressure transducer wiring diagram – pressure transducer design; File Type: JPG; Source: omega.com; Size: 19.10 KB; Dimension: 286 x 286; Essential Tips for Safe Electrical Repairs. Repairing electrical wiring, more than another household project is centered on safety.

Fundamentals, System Design, and Setup for the 4 to 20 mA ...

4-20 mA Transmitter Wiring. Several transmitter wiring options exist. The design of the associated control panel dictates which option should be used. These wiring options include: Current source transmitter, non isolated (3 wire) Current sink transmitter, non isolated (3 wire) Fully isolated (4 wire) Two wire loop powered transmitters

Pressure Transducers |Installation and Wiring Diagrams

The figure above shows the wiring diagram of the four-wire transmitter. Most of the power supply is AC 220V, and some are DC 24V. DC4 ~ 20 ma output signals and the load resistance is 250 Ω, or DC0-10 ma, load resistance to 0-1.5 K Ω; Some also have mA and mV signals, but the load resistance or input resistance,

Pressure Transmitter Circuit - InstrumentationTools

4 Wire Pressure Transducer Wiring Diagram Find this Pin and more on airconditionerby Laci. More like this Recessed Lighting Fixtures National Electric Cb650 House Wiring Electrical Wiring Custom Motorcycles Harley Davidson Diagram Wire Trudy Mccoy T Trudy Mccoy Kawasaki ninja Ac Wiring House Wiring Diagram Design Diagram Chart

4-20 mA Transmitter Wiring Types: 2-Wire, 3-Wire, 4-Wire ...

If the Tx has 4 wires and a 5 VDC supply then the output could be 1-5 VDC, 0-5 VDC, 0-20 mA or 4-20 mA. Testing the digital indicator with a power supply or calibrator could determine the electrical range. Yes a 3 wire Tx will work, you need to determine a common connection between the 5VDC supply and the digital meter.

Wiring a Pressure Transducer to a VFD | eMotors Direct

• Pressure transducer output remains constant re-gardless of pressure • In severe cases, there will be no output. ... Refer to the wiring diagrams on the reverse for the IP rating of the unit which is being installed. Mounting The G2, G3, GV and T2 transducers require no special ... 4-20mA Output 3-Wire Voltage Output.

Pressure Transducers and Transmitters

A. Sensor wire B. Transmitter C. Shield ground point. Ground the transmitter: option 3. Procedure 1. Ground sensor wiring shield at the sensor, if possible. 2. Ensure the sensor wiring and signal wiring shields are electrically isolated from the transmitter housing and other grounded fixtures. 3. Ground signal wiring shield at the power supply end.

0 5v 3 wire piezoresistive silicon pressure sensor 0 to 70 ...

Differential Pressure Transducer, Output 4-20mA HART | ATO.com

Electr. circuit for pressure sensors (active/passive) - WIKA blog

a) Infi ltrometer stand and (b) schematic wiring diagram to ...

Bench Testing a 3100 Series Pressure Sensor with a 4-20 mA ...

350bar Intelligent Differential Pressure Transducer Transmitter 4 20ma Pressure Sensor - Buy Intelligent Pressure Transmitter,4 20ma Pressure ...

4-20ma Pressure Transmitter Wiring

Difference of 4-20 mA in 2-wire & 3-wire technology - WIKA blog

Pressure Transducer, Transmitter or Sensor? | The Design ...

4-20 mA Transmitter Wiring Types: 2-Wire, 3-Wire, 4-Wire ...

How to do the 4-20mA Wiring? | Instrumentation and Control ...

4 to 20 mA pressure transmitter and reading.capture - Sensors ...
