also learned about the military grid reference system and how to plot grid ... Most military maps will display the declination diagram in the lower margin.16 pages The bottom line is this – a declination diagram is a graphic that is meant to show the map readers the relative relationships between grid, true and magnetic north. As such, it can be approximate. What is the device used to plot grid coordinates on a map? MapTools. Where is the declination diagram located on a military map?

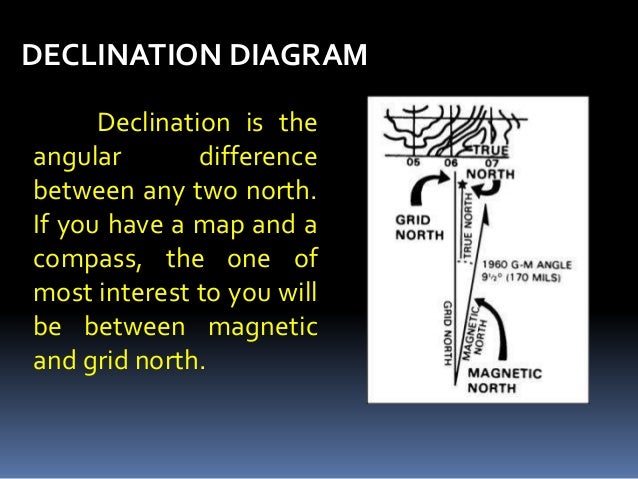

Declination Diagram. The declination diagram is located in the lower margin of large-scale maps and indicates the angular relationships of true north, grid north, and magnetic north. On maps at 1:250,000 scale, this information is expressed as a note in the lower margin.

Declination diagram on a military map

A declination diagram is a part of the information in the lower margin on most larger maps. On medium-scale maps, the declination information is shown by a note in the map margin. b. Find the magnetic declination. at your location. ×. Latitude: 0° 0' 0" N. Longitude: 0° 0' 0" E. Magnetic Declination: +0° 0'. Declination is POSITIVE (EAST) Inclination: 0° 0'. Magnetic field strength: nT. The declination diagram (usually located in the lower right margin of a map) graphically illustrates the relationships between grid north (symbolized by the ...

Declination diagram on a military map. Military maps are typically Grid North up. ... Your Declination and Grid Variance Diagram. To understand how bearings using different north references are related it helps to draw an additional line onto the declination diagram representing the bearing to the target. On this diagram it's labeled "Tgt." Given a standard 1:50,000 scale military map with a declination diagram, a pencil, and a magnetic azimuth and a grid azimuth that must be converted.2 pages declination diagram, and the conversions of azimuths from grid to magnetic, and vice versa. ... TBS-PAT-1002a Given a military topographic map, identify. Security classifications on any US military document are located in both the top and bottom margins of each page. Each map sheet would show the classification marking at top and bottom of the map.

a. Location. A declination diagram is a part of the information in the lower margin on most larger maps. On medium-scale maps, the declination information is ... a. To order a map, refer to the DMA catalog located at your S2/G2 shop. Part 3 of this catalog, Topographic Maps, has five volumes. Using the delineated map index, find the map or maps you want based upon the location of the nearest city. With this information, order maps using the following forms: (1) Standard Form 344. It can be typed or ... 1st Method - using declination diagram 7 2nd Method - without declination diagram (1-3) 8 3rd Method - when position on map is known (1-4) 8 G. Locating Position Using Intersection 9 1-7 9 H. Night-Time Use 9 1-4 9 I. Definitions 10 1. Azimuth 10 2. North 10 Figure 4 - declination diagram 10 a. True North 10 b. On USGS maps, you’ll find a declination diagram at the bottom of the map (highlighted above). This diagram will represent the difference between each of the three norths from the center of the map on a certain date. Be sure to check the date! If it’s too old, you should look up the current declination numbers for that map.

every map is shown on the bottom of mapsheet (figure C-30). Figure C-30. Declination diagram. 2. The difference between grid north and magnetic north is called the grid-magnetic (G-M) angle. The diagram at the bottom of the map tells you how to change grid azimuths to magnetic azimuths and magnetic azimuths to grid azimuths (figure C-31 ... The declination diagram (usually located in the lower right margin of a map) graphically illustrates the relationships between grid north (symbolized by the ... Find the magnetic declination. at your location. ×. Latitude: 0° 0' 0" N. Longitude: 0° 0' 0" E. Magnetic Declination: +0° 0'. Declination is POSITIVE (EAST) Inclination: 0° 0'. Magnetic field strength: nT. A declination diagram is a part of the information in the lower margin on most larger maps. On medium-scale maps, the declination information is shown by a note in the map margin. b.
